Bulls E-Stream EVO AM 4 Review
Cons: Heaviest in test, sluggish at low speeds
Compare to Similar Products
Bulls E-Stream EVO AM 4
|Price||$5,399 List||$5,975 List||$6,500 List||$5,999 List||$6,525 List|
|Pros||Good controls, huge distance range, confidence inspiring at speed, good component spec||Outstanding battery life, whisper quiet motor, just right geometry, intuitive operation||Powerful motor, good distance range, well-rounded performance||Very nice build, stealthy looks, hard-charging downhill performance||Lightweight for an e-bike, normal trail bike feel, range extender battery, quiet motor|
|Cons||Heaviest in test, sluggish at low speeds||Readout display not standard feature, SRAM Guide brakes not powerful enough, reported motor failures||Battery or motor rattle, expensive, sluggish handling at low speeds||Expensive, sluggish handling at times, came setup with tubes in tires||Less battery storage capacity, less powerful drive unit, expensive|
|Bottom Line||Confidence and stability, the Bulls E-Stream EVO AM 4 likes to party and can do so for a long time thanks to its large battery and distance range||The 2020 Specialized Turbo Levo Comp checks in for the third consecutive time as Editor's Choice thanks to class-leading range, power and innovation||A well-rounded eMTB with modern geometry and an impressive distance range||The enduro-oriented YT Decoy is capable of charging the descents as hard as you want||The new Turbo Levo SL splits the difference between a regular trail bike and a full-power e-bike|
|Rating Categories||Bulls E-Stream EVO AM 4||Specialized Turbo Levo Comp||Trek Rail 9.7||YT Decoy CF Pro||Turbo Levo SL Comp|
|Downhill Performance (35%)|
|Climbing Performance (20%)|
|Power Output (15%)|
|Distance Range (20%)|
|E Bike Controls (10%)|
|Specs||Bulls E-Stream EVO...||Specialized Turbo...||Trek Rail 9.7||YT Decoy CF Pro||Turbo Levo SL Comp|
|Battery Size (Wh)||650Wh||700Wh||625Wh||540Wh||320Wh (+160Wh Range Extender)|
|Wheel size (inches)||27.5+||29||29||29 front/27.5+ rear||29|
|Motor System||Brose Drive S (250W) 650Wh||Specialized 2.1, Custom Rx Trail-tuned 250W||Bosch Performance Line CX||Shimano Steps E8000||Specialized SL 1.1 (240W)|
|Motor Power (torque)||90Nm||75Nm||70Nm||35Nm|
|Measured Weight (w/o pedals, Medium)||55 lbs 15 oz||50 lbs 7 oz||?||50 lbs 10 oz with tubes||41 lbs 10 oz (2lbs 6 oz - range extender battery)|
|Fork||RockShox Lyrik RC Boost Solo Air 150mm||RockShox Lyrik Select RC DebonAir||RockShox Yari RC e-MTB, 160mm||Fox 36 Float Performance Elite E||Fox Rhythm 34 Float 150mm|
|Suspension & Travel||RockShox Deluxe RT 150mm||Future Shock Rear (FSR) - 150mm||Active Braking Pivot, 150mm||V4L Virtual 4-Link 165mm||Future Shock Rear (FSR) - 150mm|
|Shock||RockShox Deluxe RT||RockShox Deluxe Select+||RockShox Deluxe Select+||Fox Float DPX2 Performance Elite||Fox Float DPS Performance|
|Frame Material||Aluminum||M5 Premium Aluminum||OCLV Carbon||Carbon Fiber||M5 Premium Alloy|
|Frame Size Tested||Large||Large||Medium||Medium||Large|
|Available Sizes||44/49/54 cm||S-XL||s-XL||S-XXL||XS-XL|
|Wheelset||Formula Hubs/Bulls Rims||Roval Traverse 29, 30mm internal||Bontrager Line Comp 30||E*Thirteen E*Spec Plus||Roval Traverse 29, 30mm internal|
|Front Tire||Schwalbe Magic Mary Snakeskin, TLE, Apex, 27.5 x 2.8||Specialized Butcher GRID GRIPTON 2.6"||Bontrager XR5 Team Issue 2.6"||Maxxis Minion DHF EXO 29" x 2.5"||Specialized Butcher GRID TRAIL GRIPTON 2.3"|
|Rear Tire||Nobby Nic Snakeskin, TLE, Apex, 27.5 x 2.8||Specialized Eliminator BLCK DMND 2.3"||Bontrager XR5 Team Issue 2.6"||Maxxis Minion DHR II EXO 27.5" x 2.8"||Specialized Eliminator GRID TRAIL 2.3"|
|Shifters||Shimano Deore XT SL-M8000||SRAM S700 11-speed||SRAM NX Eagle 12-speed||Shimano XT 11-speed||SRAM NX Eagle|
|Rear Derailleur||Shimano Deore XT RD-8000-GS, 11-speed||SRAM GX, 11-speed||SRAM NX Eagle 12-speed||Shimano XT 11-speed||SRAM NX Eagle|
|Crankset||SR Suntour 38T + Miranda||Praxis||SRAM X1 1000||Shimano XT||Praxis M30|
|Crankarm length||not specified, but at least 170||165mm||165mm||165mm||170mm|
|Bottom Bracket||not specified||not specified||not specified||part of the motor|
|Cassette||Shimano SLX CS-M7000-11 , 11-speed, 11-42T||SRAM PG-1130 11-42t||SRAM PG1230, 11-50T||E*Thirteen TRS Plus||SRAM NX Eagle 11-50T|
|Chain||KMC X11E||KMC X11ET||SRAM NX Eagle||not specified||SRAM NX Eagle|
|Saddle||Selle Royal Seta M1/Bulls||Specialized Bridge 155 S2||Bontrager Arvada 138mm||SDG Radar Mountian||Specialized Bridge Comp|
|Seatpost||KS LEV-Integra||X-Fusion Manic 150mm||Bontrager Line Dropper, 150mm||SDG Tellis 150mm||X-Fusion Manic 150mm (large)|
|Handlebar||Bulls||Specialized Trail 780mm||Bontrager Comp Alloy, 780mm||Renthal Fatbar 35 800mm||Specialized Trail 780mm|
|Stem||Monkey Link||Specialized Trail||Bontrager Rhythm Comp, 60mm||Renthal Apex 35 40mm||Specialized Trail|
|Brakes||Magura MT5 hydraulic disk brakes||SRAM Guide RE 4 piston 200mm rotors||Shimano M6120 4-piston||SRAM Code RS||SRAM Guide R|
|Grips||Ergon||Specialized Sip Grip||Bontrager XR Trail Comp||ODI Elite Motion||Specialized Trail|
|Measured Effective Top Tube (mm)||638||630||611||590||625|
|Measured Reach (mm)||435||460||450||435||454|
|Measured Head Tube Angle||67||66||64.9/64.5||65.5 High/65.0 Low||66|
|Measured Seat Tube Angle||74||74.7||75||76.5 High/76 Low||74.5|
|Measured Bottom Bracket Height (mm)||354||347||34.4||340 Low||350|
|Measured Wheelbase (mm)||1230||1235||1220||1205||1218|
|Measured Chain Stay Length (mm)||462||455||447||443||437|
|Warranty||Lifetime||Lifetime on frame||Five Years on frame||Lifetime|
Our Analysis and Test Results
Bulls is a lesser-known brand in the North American market, but that is likely to change as electric mountain bikes continue to grow in popularity. They produce a huge line of full suspension and hardtail e-MTBs as well as commuter and cruiser style models. The E-Stream EVO AM 4 model we tested falls roughly in the middle of their range of full-suspension models and has a quality build for the price. It impressed our testers with its downhill prowess, stability at speed, impressive range, and battery life, and smooth and powerful power output. It's the heaviest model we tested by a fair amount, but you'll be hard-pressed to notice when you're riding this powerful model.

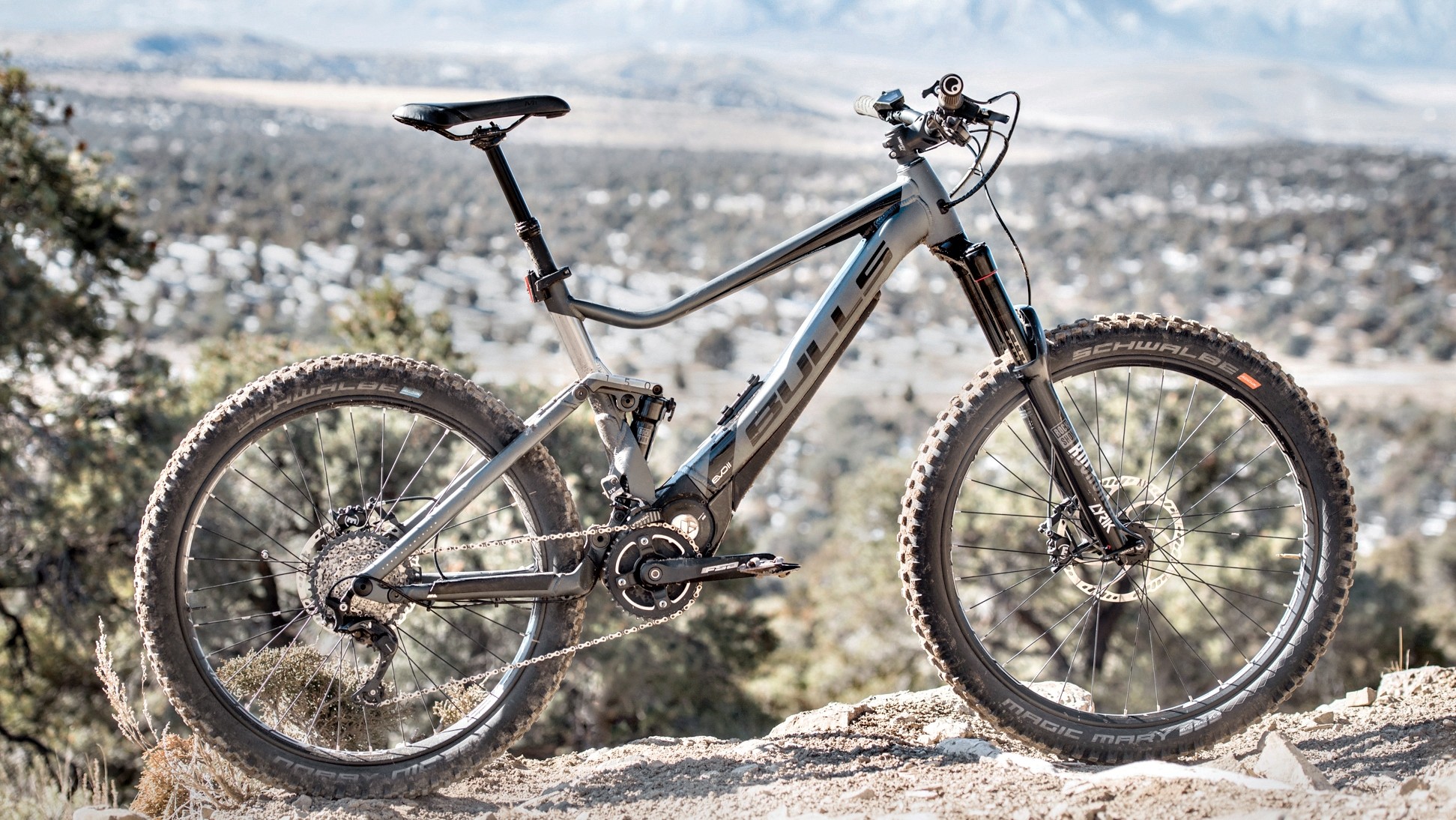

The E-Stream EVO AM 4 is an all-mountain bike with a beefy build that performs well on the descents, especially at speed. Due to the weight of the bike, the heaviest in the test at 55 lbs, nimble and agile aren't the first words that come to when describing its downhill performance traits. Interestingly, it isn't impossible to get this bike off the ground or manual as long as you are carrying some speed. This bike gets up to speed in a hurry with a stable and confidence-inspiring feel complemented by a stout RockShox Lyrik fork, comfortable cockpit, and big 2.8" tires.
The E-Stream EVO AM 4 has good geometry numbers, but with a 67-degree head tube angle, we wouldn't exactly call it slack. Once the rider adds weight to the bike and the rear suspension settles into its sag we would say that head tube angle decreases by a half to a full degree, the front end of this bike doesn't feel as steep as that measurement suggests. For comparison, all of the other bikes in this review, have head tube angles in the 65-66 degree range. The AM 4 has a 74-degree seat tube angle, a moderate 435mm reach, and a long 1230mm wheelbase. The moderate reach measurement is a good middle ground that doesn't feel too long or too short. The longer wheelbase is partially due to the long 462mm chainstays and is one of the reasons this bike feels so stable at speed but struggles somewhat in low-speed technical sections of trail.

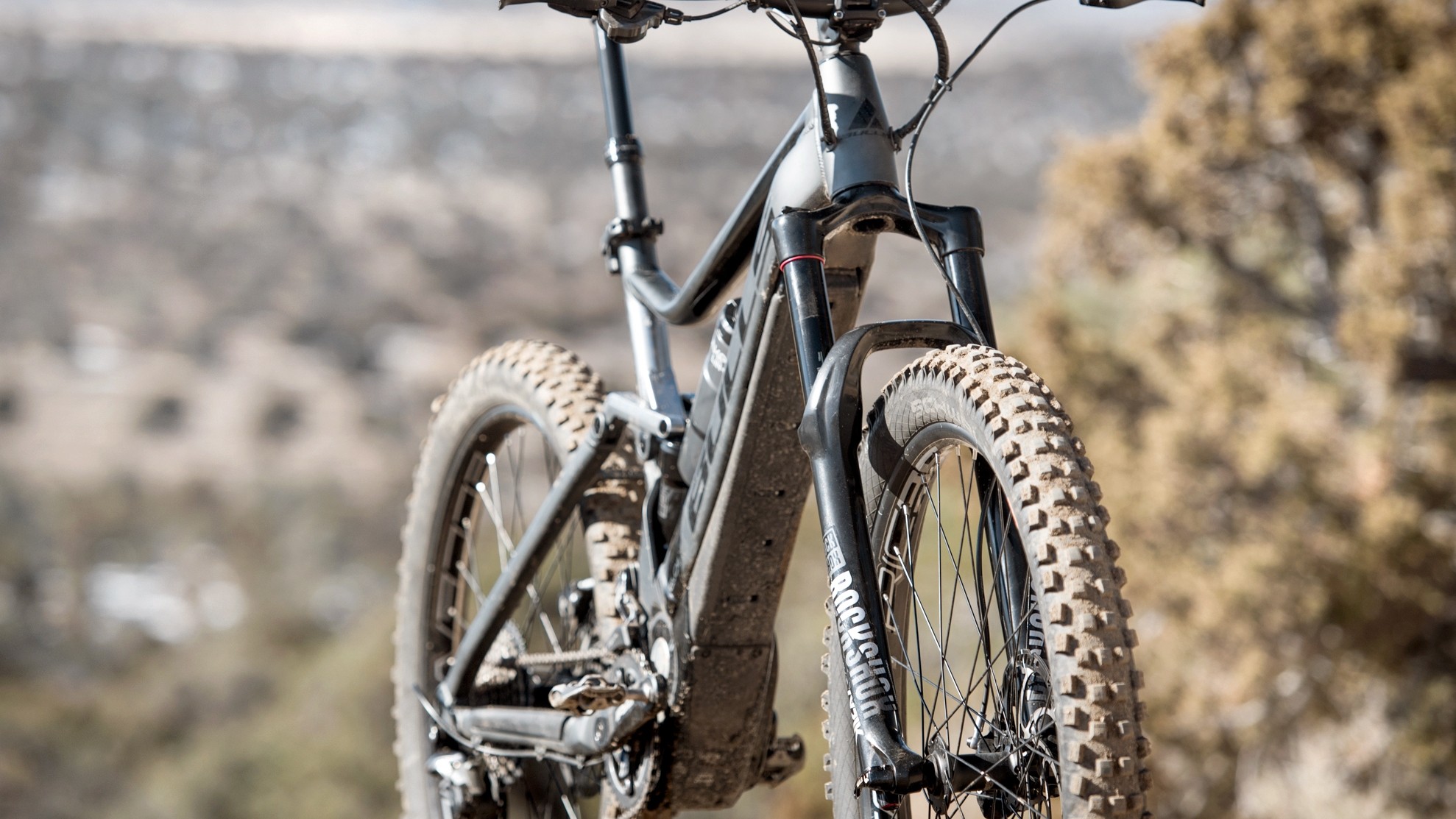

The 150mm RockShox Lyrik RC is an appropriate fork specification for a bike of this weight. It gives the front end a stout and solid feel and is highly tunable with its air spring, compression and rebound adjustments, and bottomless tokens. The 150mm of rear suspension is handled by a RockShox Deluxe RT that feels well-matched with the front end. The cockpit feels pretty dialed with a short Monkey link stem, 780mm handlebar, and KS LEV Integra dropper seat post. The spec of 2.8" Schwalbe tires, Magic Mary in front and Knobby Nic in the rear, further inspires confidence and adds to this bike's smooth and stable feel. Once this bike gets up to ludicrous speed, slowing and stopping it is handled by Magura MT5 brakes with 203mm rotors both front and rear. These brakes provide heaps of power, but testers weren't wild about their lever feel or the odd noise they make when you apply them.
The downhill performance of the E-Stream EVO AM 4 feels most similar to that of the Commencal Meta Power 29 Team. Both bikes come to life at speed but struggle a bit in tighter technical sections of trail. In the case of the Bulls bike, this is due mostly to the long wheelbase and heavier weight. This in contrast to the Specialized Turbo Levo Comp which strikes a good balance with a more versatile performance on the descents.
The climbing performance of the E-Stream EVO AM 4 is surprisingly good, we might even call it fun. It has enough power on tap make climbing as exciting as the descents, and it scrambles up just about anything. The drive unit's four support settings make it easy to dial it in for the trail, conditions, or workout you're after. The Brose Drive S unit provides very consistent power output that comes on very smoothly the moment the pedals start turning and continues for a second or so after they stop. This is especially nice in technical sections of trail where you may jockey your pedals to avoid striking them on rocks and makes it less likely to bog down under the weight of the bike.
The E-Stream EVO AM 4's geometry plays into the way it handles on the climbs. The longer wheelbase makes it a little tougher to get around tight switchbacks and through tricky rock gardens, although the steeper head tube angle helps keep the front end from wandering. The 74-degree seat tube angle isn't quite as steep as the competition, but it still puts the rider in a pretty neutral position above the pedals. The moderate reach feels good, neither cramped or too stretched out. The rear shock does have a dampening switch for use when climbing, although like with most pedal-assist bikes, it seems a bit unnecessary unless you're riding pavement for a long time. The large 2.8" Schwalbe tires also provide loads of traction for clawing your way over rocks, roots; you name it.
It is worth mentioning that the E-Stream EVO AM 4 is a bit of a bear if and when you do get to a section of trail that may be too steep to climb. This bike weighs 55 lbs and as far as we can tell it doesn't have a walk feature to assist you if you end up in a hike a bike situation.
Testers were very impressed with the performance of the Brose Drive S pedal-assist system on the E-Stream EVO AM 4. Like most others, they claim a nominal power output of 250 watts, but one of the main things that was impressive was the smoothness of it, and this is due to the belt-driven system. The drive unit engages with no jerkiness or twitchiness, just smooth pedal assistance the moment the pedals start turning. This is in contrast to other systems that can feel twitchy and anxious to go. It is also pretty quiet, one of the quietest in the test, quieter than the Shimano equipped bikes. The Bulls bike doesn't announce that you're riding an e-bike the way a louder motor does. We also rode this bike with the motor off, and there wasn't any noticeable resistance which is nice considering the weight of this rig.
In addition to the smoothness of the engagement of the pedal assistance, testers also appreciated the lack of abruptness when the pedals stop turning. The extension of the powerband for a moment after you stop pedaling makes a world of difference and helps to prevent this bike from feeling like dead weight. The drive motor has four output settings, Cruise, Tour, Sport, and Power, and those settings are customizable to match your preferences. The drive unit also boasts 90Nm of torque, the most of all models we tested, and it has no problem hitting its top assisted speed of 20mph.
The simple fact that the E-Stream EVO AM 4 comes with a 650Wh battery automatically gives it a longer distance range than many bikes because it has more storage capacity. This is nearly 30% more battery life than the other competitors in this review which have 500Wh or 504Wh batteries. In theory, this would result in approximately 30% more distance range, but that varies with factors like rider weight, output setting, trail conditions, weather conditions, etc. Bulls claims a range of 137 miles under optimal conditions, and while that really sounds impressive, it would be nearly impossible to achieve that kind of mileage while on a normal mountain bike ride. To test the range on the Bulls, we took it for a not so casual 24-mile ride with over 4,600 vertical feet of climbing. During the ride, it was used primarily on the highest output settings, Sport and Power, and when we were finished, it still had a bar of battery charge remaining on the display. We feel this is quite impressive.
It's not exactly fair to compare the distance ranges of the other bikes we tested to that of the Bulls E-Stream since the storage capacities of the batteries are quite different, but we'll do it anyway. The 2020 Specialized Turbo Levo Comp had the most range, not surprising given the fact that it has a 700Wh battery. Our top distance range performer with a 500Wh battery was the Rocky Mountain Instinct Powerplay which traveled 20 miles and 4,297 vertical feet. While most models come with 500Wh batteries, several options now come with 650Wh and even 750Wh storage capacities. Batteries are heavy, and the larger the battery, the more it and your bike are likely to weigh.

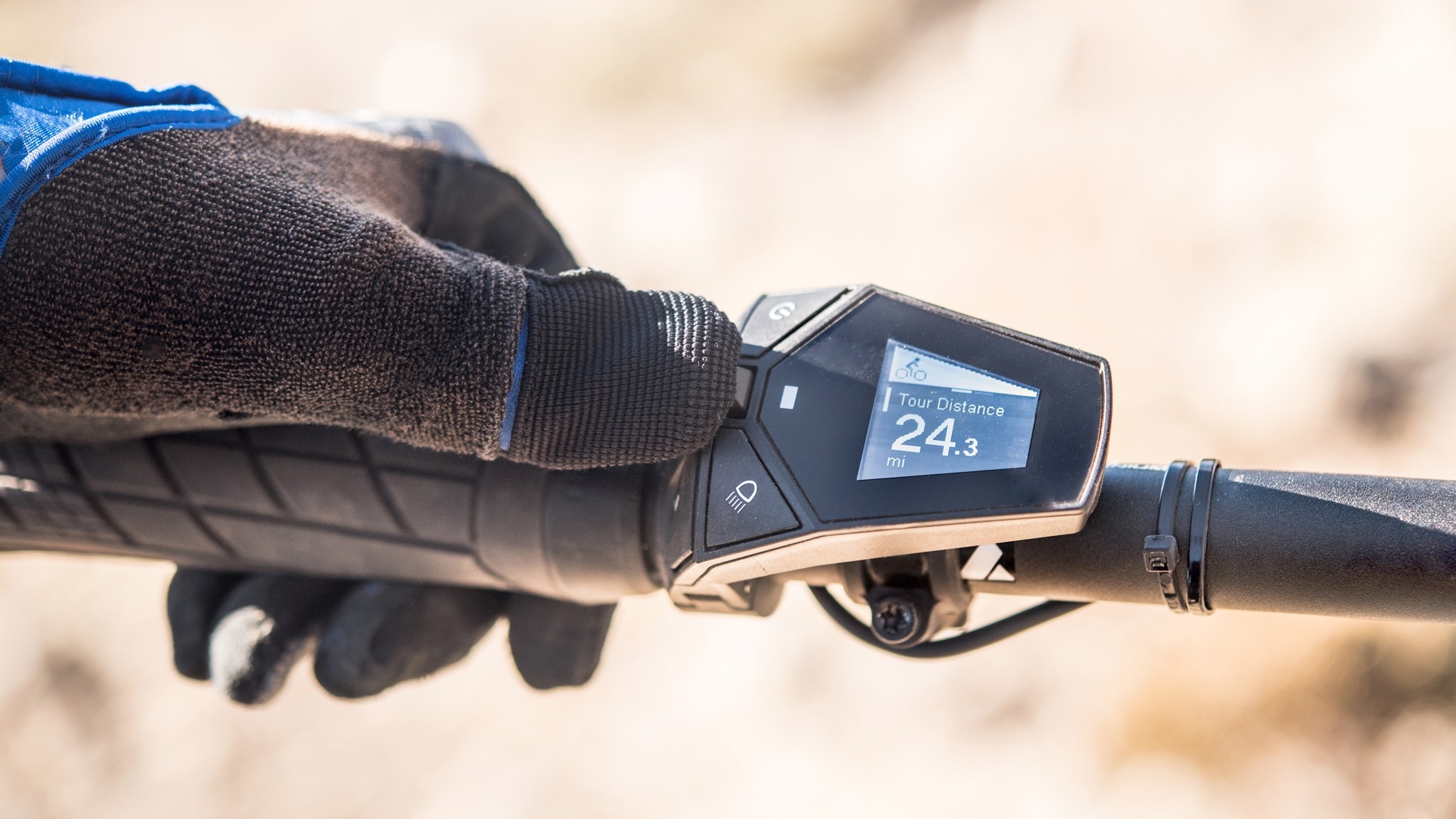

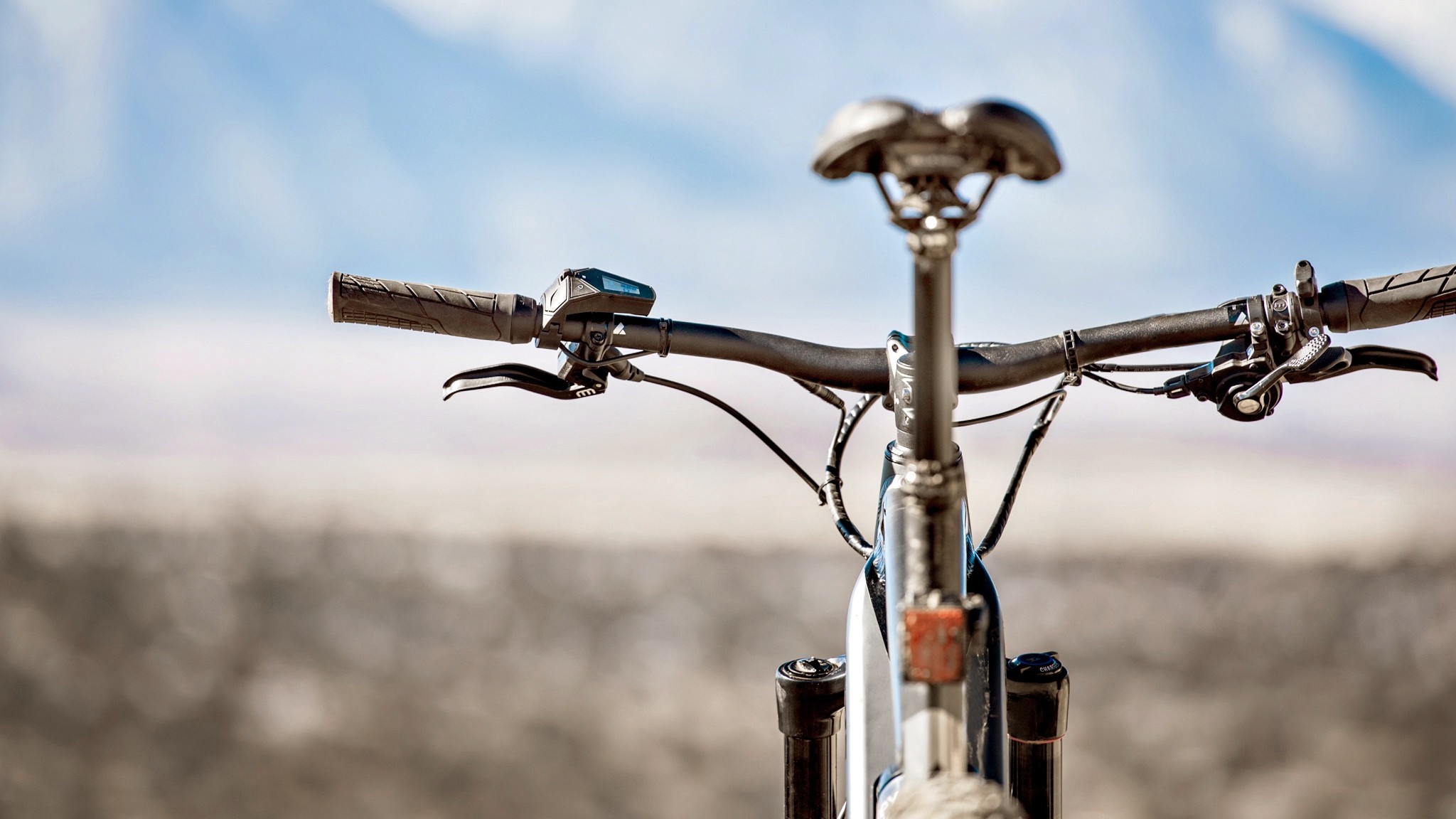

The controls on the E-Stream EVO AM 4 are among the best in the test. There is a Compact Sports Interface (CSI) control unit mounted on the handlebar by the left grip which has several buttons for power, lights, changing power output, a small joystick, and an easy to read digital display. Turning the power on is as simple as pressing the power button on the top of the controller, and it fires up almost instantly. This controller has decent ergonomics with the buttons you press most frequently while riding, to shift through the four power output settings, located closest to the thumb on the side of the unit. The display is somewhat small, but it is bright and easy to read even in very sunny conditions. The main page displays your current speed in the center with 4 bars at the top of the screen that shows which output setting you're using and 4 bars at the bottom of the screen that displays remaining battery life. The small joystick on top of the unit allows you to scroll between pages to view your power output displayed in watts, ride distance, total distance, and remaining mileage range. Additionally, the control unit can be synced with your phone or heart rate monitor via Bluetooth to an app called Naviki that has navigation and mapping features. You can also adjust the power output settings to your preferences. No other bike we've tested has this amount of information available on display.

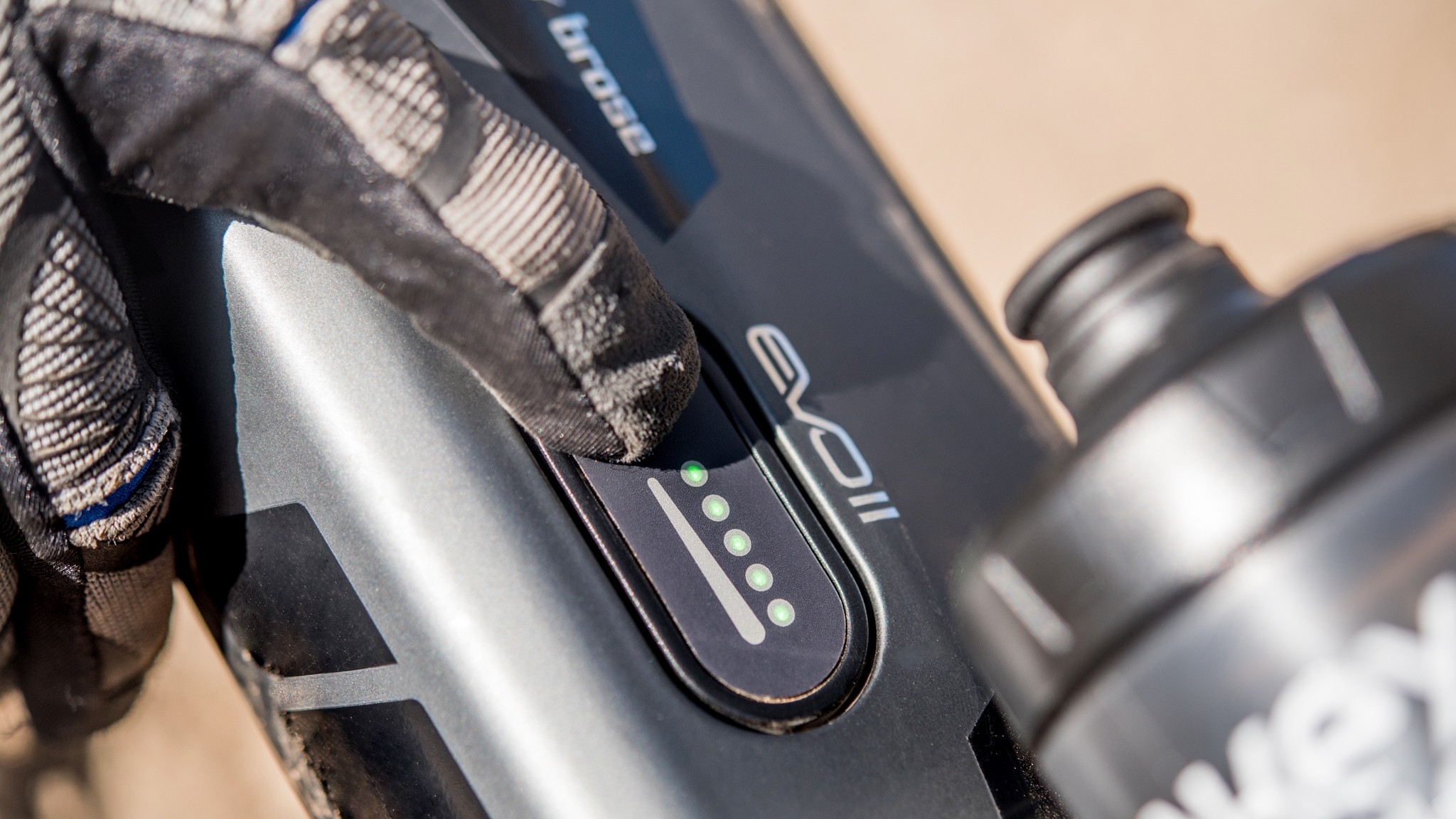

There is an additional battery display on the downtube which shows the remaining battery charge. When you press the button at the top of this display a number of small green lights illuminate depending on remaining battery life. Charging is done with a Rosenberger plug which is nearly identical the that used on the Specialized Turbo Levo Comp. This plug has a secure magnetic connection that holds it in place on the charging port. The charging port is located lower down on the downtube and covered with a magnetic rubber cap. The charging port itself is recessed within the frame about an inch and a half or so, and it is difficult to see when you are attempting to attach the plug to it.

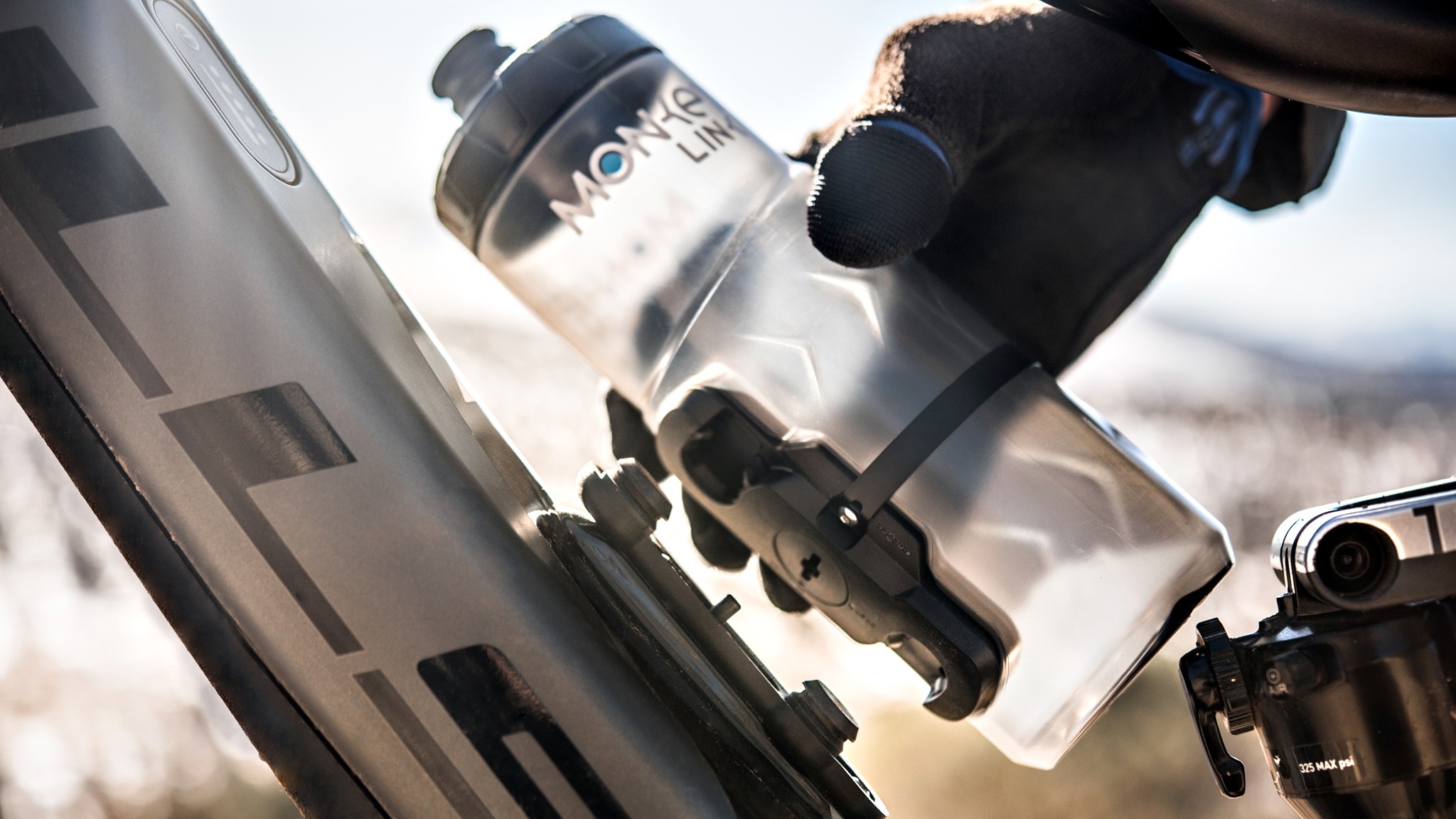

The E-Stream EVO also has a system called "Monkey Link" integrated into its design. This includes a magnetic water bottle system and magnetic mounts for lights on the bottom of the stem and on the back of the seat clamp. We didn't have the chance to test the lights, but this is an innovative system that allows you to quickly and easily mount or remove the lights with power supplied by the bike's battery, and turn them on and off with the button on the control unit. We did test the water bottle, and we found it easy to attach and remove, it even stayed in place during the rowdiest of descents. Monkey Link makes a range of lights, reflectors, fenders, and bottles.
The component specification on the E-stream EVO AM 4 is nothing mind-blowing, but it is definitely nice for the price. It all starts with their 7005 Aluminum frame, which is beefy and stout from front to back. The Brose Drive S pedal-assist motor is integrated into the frame at the bottom of the down tube and around the bottom bracket. Above that, the 650Wh powerpack is also built into the downtube for a super clean look. RockShox parts were chosen to handle the suspension duties with a 150mm Lyrik RC Solo Air fork and a 150mm Deluxe RT in the rear. Testers had no qualms with the suspension on the Bulls, it is highly tunable and felt sturdy enough to handle this heavyweight machine.

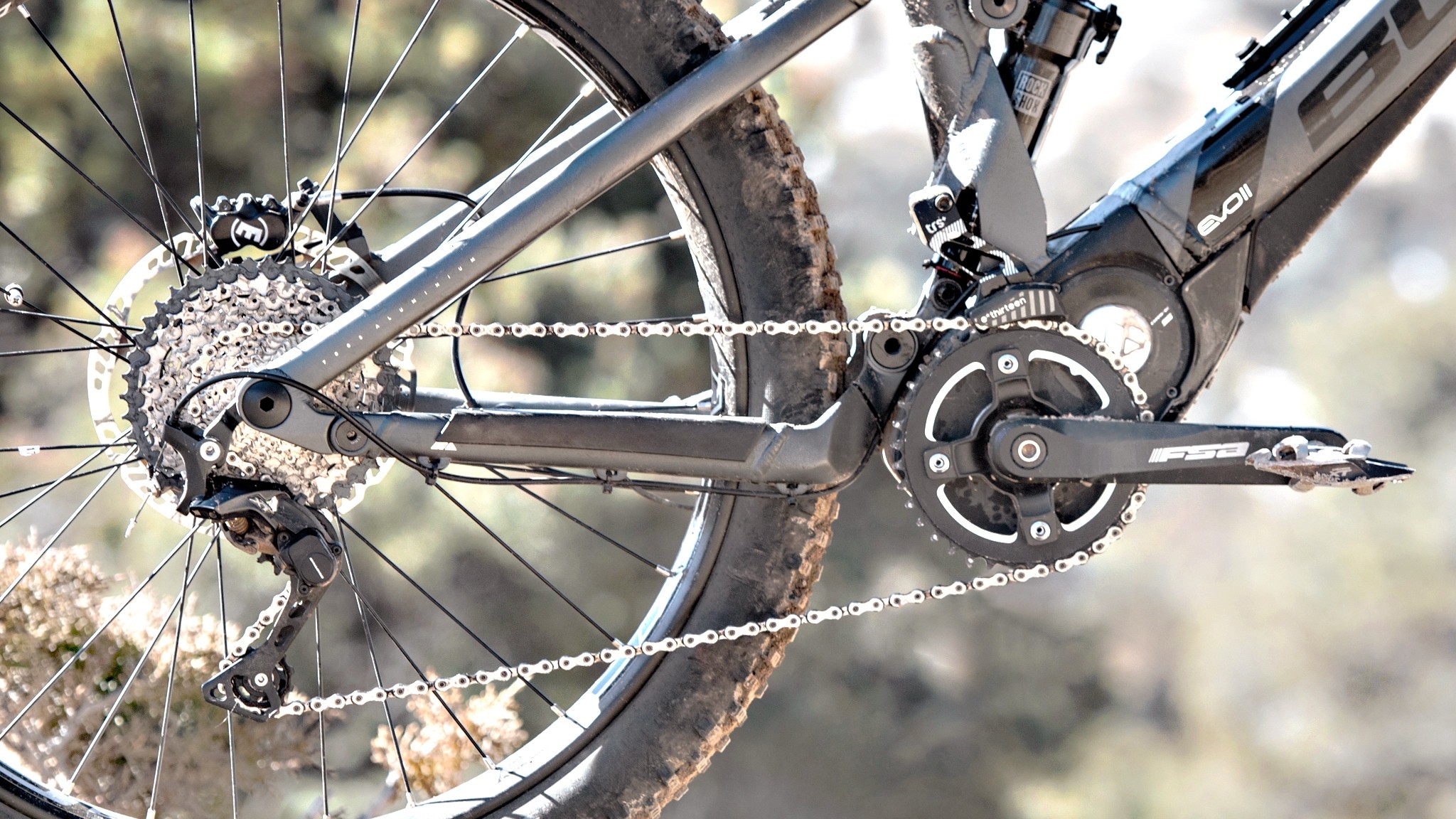

Shifting responsibilities were left to an 11-speed Shimano XT derailleur and shifters. Shifting was precise as expected, and the Shadow clutch on the derailleur plus a chain guide helped prevent any unwanted chain drops. It has an FSA crankset with a 38-tooth ring and an SLX 11-42 11-speed cassette that provides plenty of range given the pedal assistance available.
Braking is handled by a powerful set of four-piston Magura MT5 brakes with 203mm rotors front and rear. Testers didn't love the lever feel or the interesting sound of the Magura stoppers, but they did work well. The cockpit consists of a short Monkey Link stem attached to a modern width handlebar with Ergon grips. There is the addition of a KS LEV Integra seat post to drop it down and out of the way on descents. One thing we didn't love about the cockpit was the fact that the seat post remote wasn't the under-mount 1x shifter style. This is likely because the e-bike controls take up a fair amount of real estate on the left side of the bar, and they would conflict. Our test model had the KS Polycarbonate remote on the right side of the bar, not a deal-breaker but it takes a little getting used to if you're accustomed to something else. Rounding out the cockpit is a Selle Royal saddle with Bulls branding. Not the most comfortable saddle in the world, but not horrible either.
Rounding out the build is nice wide Bulls rims laced to Formula hubs with boost spacing and thru-axles front and rear. Mounted to those rims are some 27.5 x 2.8" Schwalbe tires, Magic Mary in the front, and a Nobby Nic in the back, which provide plenty of traction both climbing and descending.
At a retail price of $5,399, the AM 4 is comparable in price to the other bikes in this review give or take a few hundred dollars. For that price you get roughly 20% more battery life and potential distance range, plus a well spec'd bike that doesn't need any upgrades to be a blast on the trail. Considering how well equipped and fun to ride it is, we feel it represents a pretty good value assuming you're looking for a fast and powerful electric mountain bike.
Testers were thoroughly impressed with the E-Stream EVO AM 4. This bike's combination of stability at speed, smooth power output, long battery life, and a nice build instantly made it a tester favorite. It's low-speed handling, and heavier weight left a bit to be desired, and in the end, it was bested by the Specialized Turbo Levo Comp for the Editor's Choice Award. That said, we still think it is a great option, especially for the rider seeking more battery life and a greater distance range.
Other Versions and Accessories
Bulls makes a wide range of electric mountain bikes, both full suspension and hardtail models, in a variety of builds and price points. They make two versions of the E-Stream EVO AM including the AM 4 model reviewed here.
The E-Stream EVO AM 3 ($4,999) shares the same frame, battery, and drive unit as the AM 4. The component specification is quite similar although it has a RockShox Yari RC fork, a Shimano Deore drivetrain, and Nobby Nic tires front and rear.
Monkey link also makes a line of magnetic accessories that are compatible with the monkey link mounts integrated into the design of the AM 4. These include lights, water bottles, and fenders. More information can be found on the Monkey Link website, and accessories can be purchased from several online retailers.
— Jeremy Benson
